Monday, August 30, 2010

Harley Davidson XL 833R ROADSTER


HARLEY DAVIDSON – XL 883R ROADSTER

Price: Rs. 7,50,000 (Ex Showroom, Delhi)

Dimensions

Length 2,245 mm

Overall Width 930 mm

Overall Height 1,150 mm

Seat Height 760 mm

Ground Clearance 141 mm

Wheelbase 1,520 mm

TIRES

Front - D401F 100/90-19 57H

Rear - D401 150/80B16 71H

Fuel Capacity 12.5 L

Oil Capacity 2.7 L

Kerb Weight 260 kg

ENGINE

Engine Air-cooled, Evolution

Bore x Stroke 76.2 mm x 96.8 mm

Displacement 883 cc

Compression Ratio 8.9:1

Fuel System Electronic Sequential Port Fuel Injection (ESPFI)

Lubrication System Dry-sump

POWER

Engine Torque 70 Nm @ 3750 rpm

DRIVETRAIN

Primary Drive Chain, 34/57 ratio

Final drive - HDI Belt, 28/68 ratio

Clutch Multi-plate, wet

Transmission 5-speed

CHASSIS

Frame Mild steel; tubular frame; circular sections; cast junctions

Swingarm Mild steel, rectangular tube section, stamped junctions; MIG welded

Front Forks 39 mm

Rear Shocks Coil-over; preload dual-adjustable

Brakes, Caliper Type Dual-piston front, single-piston rear

ELECTRIC

Battery Sealed, maintenance-free, 12V, 12-amp.

Headlamp 55-watt low beam; 60-watt high beam

















Monday, August 23, 2010

Wednesday, August 11, 2010

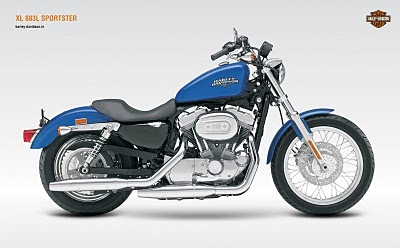

Harley Davidson XL883L SPORTSTER


HARLEY DAVIDSON – XL 883L SPORTSTER

Price: Rs. 6,95,000 (Ex Showroom, Delhi)

Dimensions

Length 2,250 mm

Overall Width 890 mm

Overall Height 1,155 mm

Seat Height 670 mm

Ground Clearance 100 mm

Wheelbase 1,515 mm

TIRES

Front - D401F 100/90-19 57H

Rear - D401 150/80B16 71H

Fuel Capacity 12.5 L

Oil Capacity 2.65 L

Kerb Weight 260 kg

ENGINE

Engine Air-cooled, Evolution

Bore x Stroke 76.2 mm x 96.8 mm

Displacement 883 cc

Compression Ratio 8.9:1

Fuel System Electronic Sequential Port Fuel Injection (ESPFI)

Lubrication System Dry-sump

POWER

Engine Torque 70 Nm @ 3750 rpm

DRIVETRAIN

Primary Drive Chain, 34/57 ratio

Final drive - HDI Belt, 28/68 ratio

Clutch Multi-plate, wet

Transmission 5-speed

CHASSIS

Frame Mild steel; tubular frame; circular sections; cast junctions

Swingarm Mild steel, rectangular tube section, stamped junctions; MIG welded

Front Forks 39 mm

Rear Shocks Coil-over; preload dual-adjustable

Brakes, Caliper Type Dual-piston front, single-piston rear

ELECTRIC

Battery Sealed, maintenance-free, 12V, 12-amp.

Headlamp 55-watt low beam; 60-watt high beam



















Wednesday, August 4, 2010

Honda Dazzler


Honda Dazzler

Price: 74,000 Rs.

Weight/Measurement:

Kerb Weight (Kg) 138

Length (mm) 2073

Width (mm) 754

Height (mm) 1085

Wheelbase (mm) 1328

Ground Clearance (mm) 162

Fuel Tank Capacity (Ltr) 12

Chassis

Chassis Advanced Design Diamond Frame

Front Suspension Telescopic Fork

Rear suspension Mono Suspension: 3 step adj

Tyre Type Tubeless

Front Tyre 80/100 17-M/C 46P

Rear Tyre 110/80 17-M/C 57P

Front Brake Type Disc 240mm dia

Rear Brake Type Disc 220mm dia

Engine and Transmission

Engine Air Cooled, 4 stroke, SI Engine

Displacement (cc) 149:1

Net Power 14bhp@8500 rpm

Torque 1.3kg-m@6500 rpm

Air Filter Viscous Paper Filter

Carburetor/Fuel Injection Carb

Starting System Self

Transmission Constant Mesh, 5 speed gear

Gear Shift Pattern 1 Down 4 up

Electricals

Ignition Digital CDI (Multi Mapping)

Battery 12V-4AH Maintenance Free

Headlamp Halogen 12V 35/35W

Inst Panel Digital

Mileage 60

Chain Case Half
