Harley Davidson - FXDC SUPER GLIDE

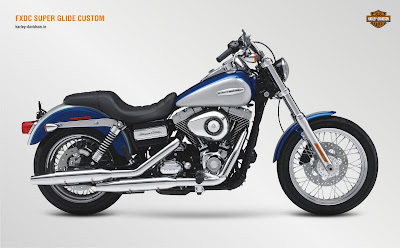

HARLEY DAVIDSON – FXDC SUPER GLIDE CUSTOM

Price: Rs. 15,45,000 (Ex Showroom, Delhi)

Dimensions

Length 2,345 mm

Overall Width 955 mm

Overall Height 1,175 mm

Seat Height 710 mm

Ground Clearance 120 mm

TIRES

Front - Scorcher "31" 100/90B19 57H

Rear - Scorcher "31" 160/70B17 73V

Fuel Capacity 18.8 L

Oil Capacity 2.8 L

Kerb Weight 310 kg

ENGINE

Engine Air-cooled, Twin Cam 96

Bore x Stroke 95.3 mm x 111.1 mm

Displacement 1584 cc

Compression Ratio 9.2:1

Fuel System Electronic Sequential Port Fuel Injection (ESPFI)

Lubrication System Pressurized, dry-sump

POWER

Engine Torque 123 Nm @ 3125 rpm

DRIVETRAIN

Primary Drive Chain, 34/46 ratio

Final drive - HDI Belt, 32/66 ratio

Clutch Multi-plate, wet

Transmission 6-speed Cruise Drive

CHASSIS

Frame Mild steel; tubular frame; rectangular section backbone; stamped, cast

and forged junctions; forged fender supports; MIG welded

Swingarm Mild steel, rectangular tube sections, stamped junctions; MIG welded

Front Forks 49 mm with polished aluminum fork triple clamp and dual-rate springs

Rear Shocks Coil-over shock

Brakes, Caliper Type 4-piston fixed front and 2-piston torque-free floating rear

ELECTRIC

Battery Sealed, maintenance-free, 12V, 19-amp.

Headlamp 55-watt low beam; 60-watt high beam
